Gate valve actuator
This Automatic and adjustable actuator is primarily used to control the flow of molten metal along a trough/launder through a gate valve (Dam).
Product information

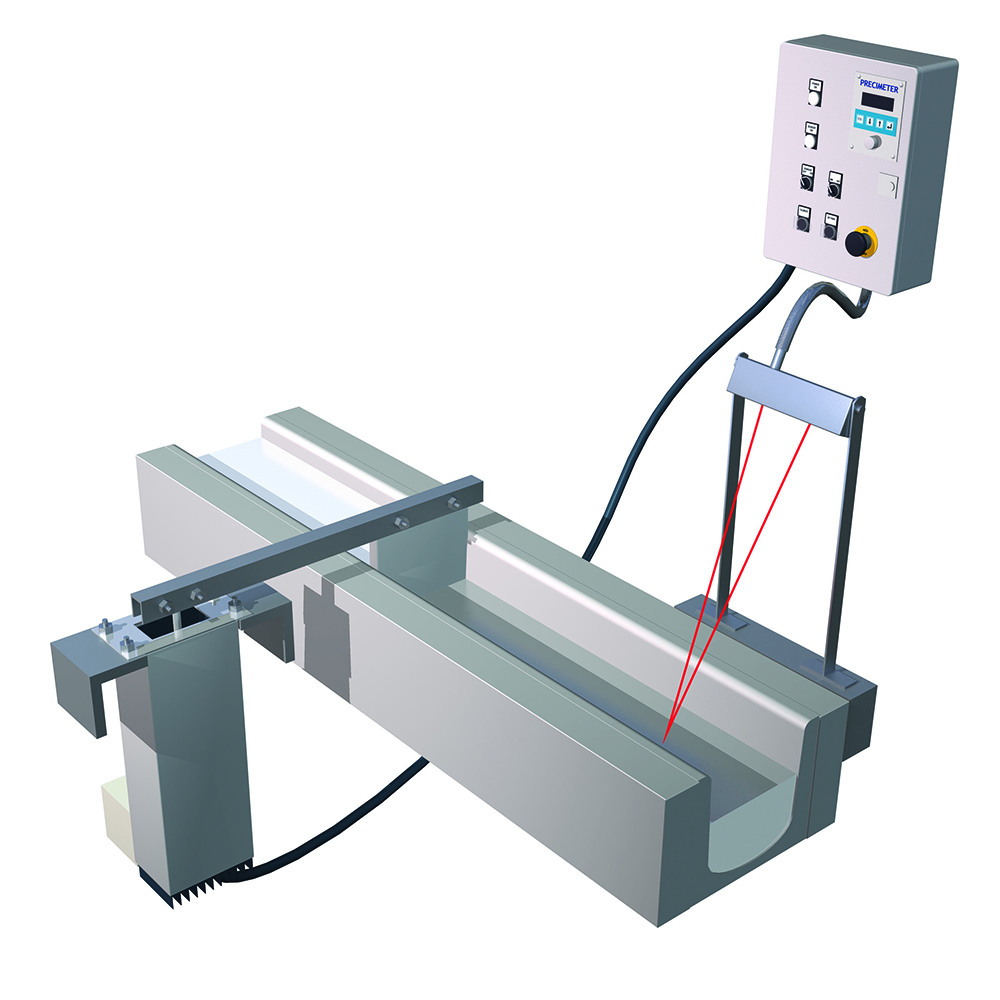

Launder level control with Precimeter Gate Valve Actuator GXP-10 connected to the ProH level sensor and MLC control panel enables a very accurate control in the metal level downstream casting process.
The Precimeter Gate Valve Actuator GXP-10 can be mounted in different positions with simple linkage arm systems. To avoid oxidation and high temperature exposure one mounting example is at the side of the casting launder.
- Accurate control
- Robust design
- Easy installation
- Minimal maintenance
- Flexible mounting options
- Available with two stroke length
- Terminal connection for parameter setting
- Ethernet protocol (optional)
| Stroke: | 32-254 mm (1.25”-10”) |
| Accuracy: | ±0.23 mm |
| Positioning: | Stepper motor |
| Power Requirement: | 24 VDC < 1 A |
| Cooling: | Compressed air (1/4” connection) |
| Interface: | Serial communication |
Operation Signals |
|
| Arm/Rod Position: | 4-20mA (0-100%) |
| Calibration: | 24 VDC |
Feedback Signals |
|
| Arm/Pin Position: | 4-20mA (0-100%) |
| Internal Temp Output: | 4-20mA (0-100°C) |
| Ethernet Protocol: | Optional (Profinet, Ethernet IP or Modbus TCP) |
