Pin position actuator
Pin position actuator with fail safe emergency close functionality.
Product information
The Pin Position Actuator PXP-2EM is primarily used to control the flow of molten metal through a stopper and nozzle valve; for instance in ingot/slab casting applications. The PXP-2EM is also prepared with a fail safe emergency closing system.

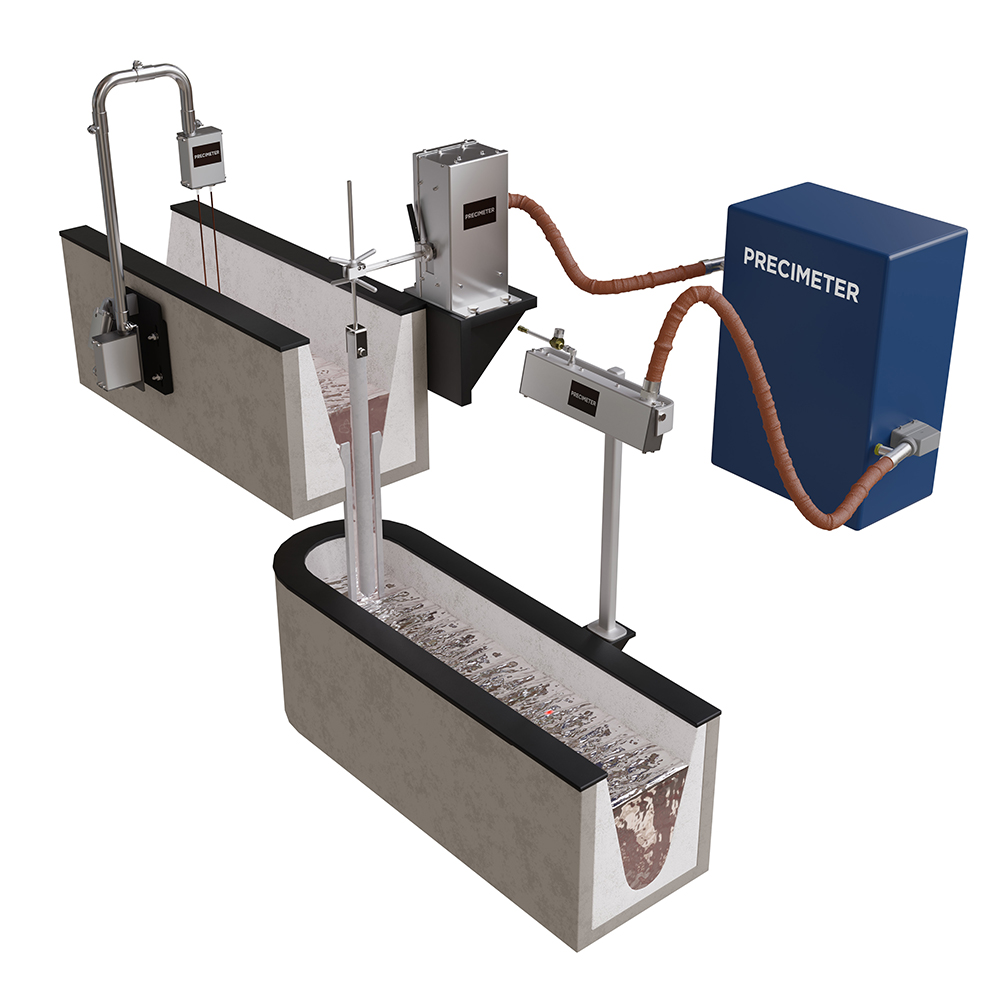

Vertical drop control with PXP-2EM pin positioner. The Precimeter pin position actuator PXP-2EM connected to the ProH and an MLC control panel form a system which very precisely controls the molten metal level, in for example a tundish or a DC slab casting mould.
- Emergency closing function
- Accurate control
- Robust design
- Easy installation
- Minimal maintenance
- Flexible mounting options
- Terminal connection for parameter setting
- Ethernet protocol (optional)
- Pin rotation (optional)
| Stroke: | 0-50 mm (0-2”) |
| Accuracy: | ±0.15 mm |
| Positioning: | Stepper motor |
| Power Requirement: | 24 VDC < 1 A |
| Cooling: | Compressed air (1/4” connection) |
| Interface: | Serial communication |
Operation Signals |
|
| Arm/Rod Position: | 4-20mA (0-100%) |
| Load Carriage: | 24 VDC |
| Calibration: | 24 VDC |
Feedback Signals |
|
| Arm/Pin Position: | 4-20mA (0-100%) |
| Carriage Loaded: | 24 VDC |
| Internal Temp Output: | 4-20mA (0-100°C) |
| Ethernet Protocol: | Optional (Profinet, Ethernet IP or Modbus TCP) |
