Pin position actuator
This actuator is primarily used to control the flow of the molten metal through a pin and spout valve in slab (rolling) ingot casting.
Product information
The Pin Position Actuator PXP-2LP is primarily used to control the flow of molten metal trough a pin-plug valve in for instance ingot casting. The PXP-2LP actuator offers a lower height profile over the through or launder than the PXP-2(E). This means that it can be used in areas where space above the through or launder is restricted. This actuator can easily be adapted to fit any through configuration.

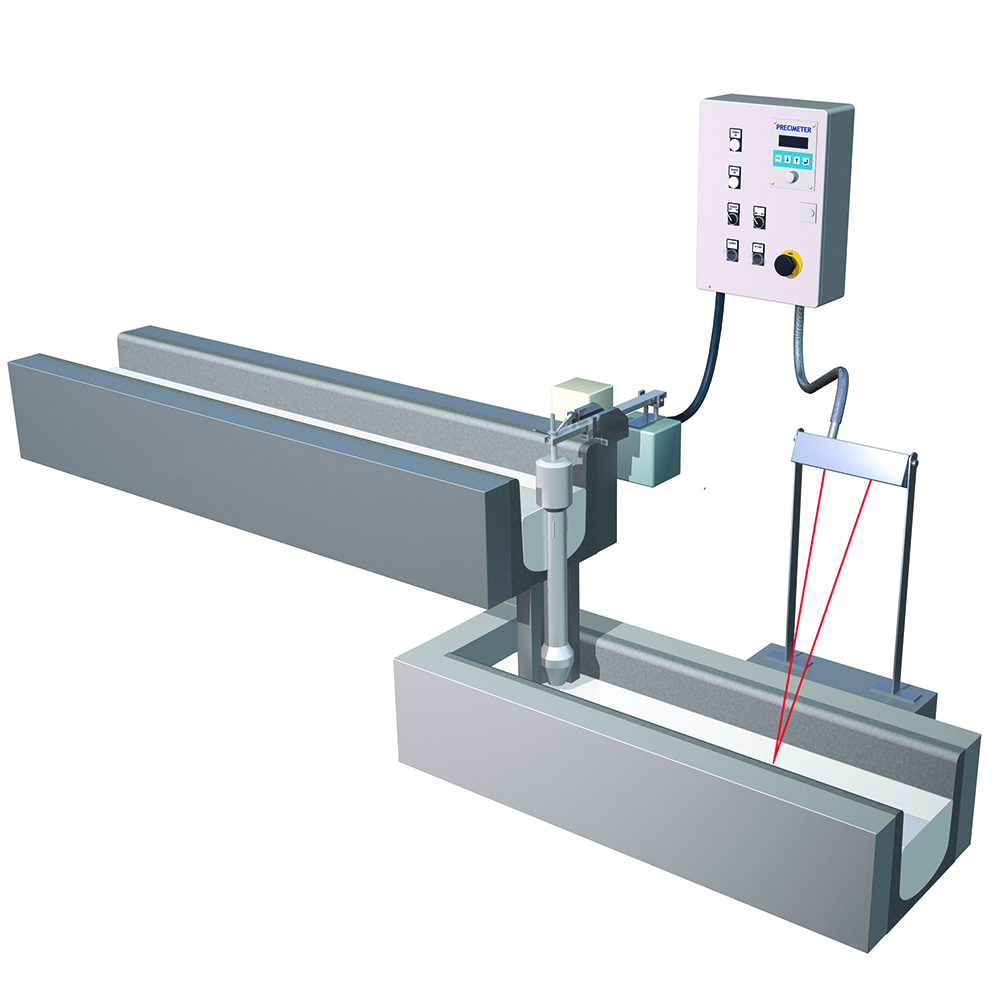

Vertical drop control with PXP-2LP pin positioner. The Precimeter pin position actuator PXP-2LP connected to the ProH and an MLC control panel form a system which very precisely controls the molten metal level, in for example a tundish or a DC slab casting mould.
- Low profile version
- Accurate control
- Robust design
- Easy installation
- Minimal maintenance
- Terminal connection for parameter setting
- Ethernet protocol (optional)
| Stroke: | 6-50.4 mm (0.25-2.0”) |
| Accuracy: | ±0.38 mm |
| Positioning: | Stepper motor |
| Power Requirement: | 24 VDC < 1 A |
| Cooling: | Compressed air (1/4” connection) |
| Interface: | Serial communication |
Operation Signals |
|
| Arm/Rod Position: | 4-20mA (0-100%) |
| Calibration: | 24 VDC |
Feedback Signals |
|
| Arm/Pin Position: | 4-20mA (0-100%) |
| Carriage Loaded: | 24 VDC |
| Internal Temp Output: | 4-20mA (0-100°C) |
| Ethernet Protocol: | Optional (Profinet, Ethernet IP or Modbus TCP) |
