Tap out actuator
Increase quality and safety with Furnace tap out actuators. Stabilize the molten metal flow and control your launder levels.
Product information
The Tap Out Actuator TXP-10 is primarily used to control the flow of molten metal launder at the exit tap hole of a stationary furnace. The TXP-10 can be mounted vertically with a special linkage arm system which has a stroke of 101 mm (4”).This actuator is also avaliable as the TXP-20 with a 20” stroke.

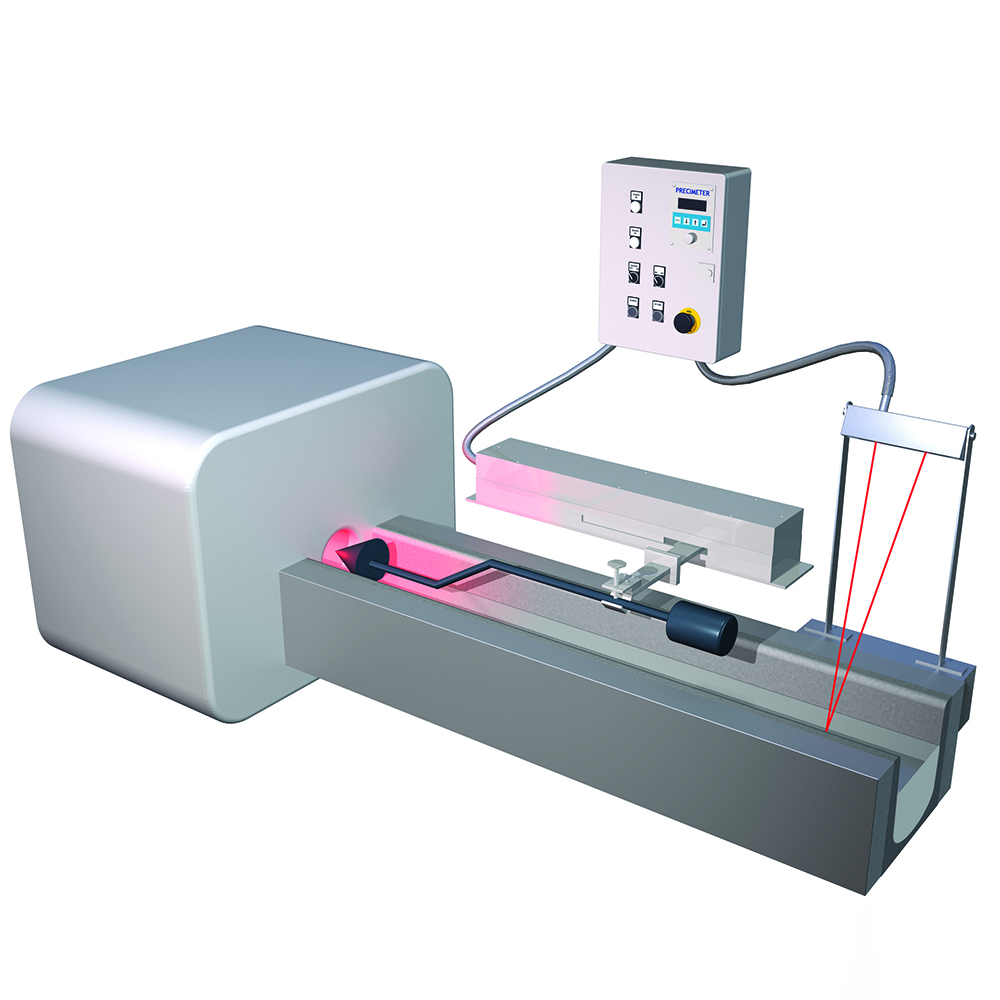

Furnace tap out control with TXP-10 Tap Out Actuator. The Precimeter TXP-10 actuator connected to the ProH and an MLC control panel form a system that accurately controls the molten metal level and flow out of the stationary furnace.
- Accurate control
- Robust design
- Easy installation
- Minimal maintenance
- Flexible mounting options
- Available with two stroke length
- Terminal connection for parameter setting
- Ethernet protocol (optional)
| Stroke: | 532-254 mm (1.25”-10”) |
| Accuracy: | ±0.24 mm |
| Positioning: | Stepper motor |
| Power Requirement: | 24 VDC < 1 A |
| Cooling: | Compressed air (1/4” connection) |
| Interface: | Serial communication |
Operation Signals |
|
| Arm/Rod Position: | 4-20mA (0-100%) |
| Calibration: | 24 VDC |
Feedback Signals |
|
| Arm/Pin Position: | 4-20mA (0-100%) |
| Internal Temp Output: | 4-20mA (0-100°C) |
| Ethernet Protocol: | Optional (Profinet, Ethernet IP or Modbus TCP) |
